HPE ProLiant DL580 Generation 9 (Gen9)
Overview
The HPE ProLiant DL580 Gen9 Server is the Hewlett Packard Enterprise four socket (4S) enterprise standard x86 server offering commanding performance, rock-solid reliability and availability, and compelling consolidation and virtualization efficiencies.
Supporting Intel® Xeon® E7-4800/8800 v3 processors, the HPE DL580 Gen9 offers enhanced processor performance, up to 6TBs of memory, greater IO bandwidth (9 PCIe Gen3.0 slots), and 12 Gb/s of SAS speeds. HPE ProLiant DL580 Gen9 has security and data protection features for system resiliency that your business can depend on. All, making it ideal for mission-critical enterprise, business intelligence, and database applications.
Whether needed for highly virtualized or cloud based deployments, with intelligence and simplicity of automated management with HPE OneView and HPE iLO 4 your business can achieve agile and lower cost infrastructure management.
DL580-G9

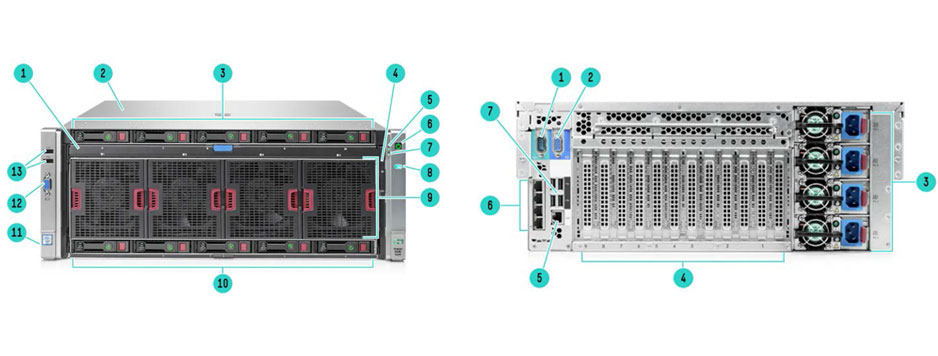

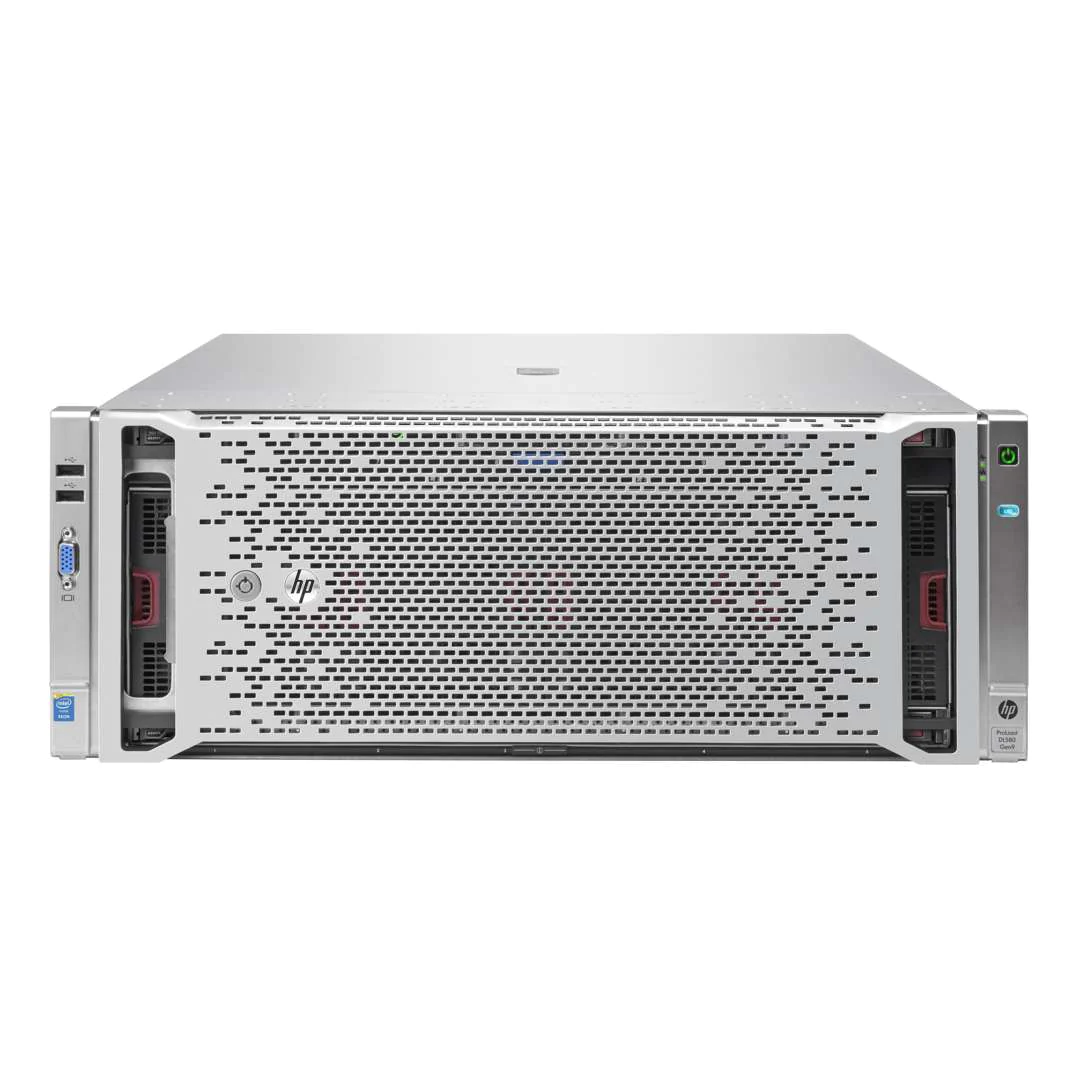

Front View
1 CPU Memory Drawer Handle
2 Quick removal access panel
3 Drive bays 6-10
NOTE: Drives installed in these bays require the optional SAS backplane and cables.
NOTE: Optional NVMe drives are only supported in Drive bays 6-10.
4 Systems Insight Display
5 Health Status LED
6 Power On/Standby button and system power LED button
7 NIC status LED
8 UID button
9 Fans 1-4
10 Drive bays 1-5
11 Discovery services connectors
12 Video connector
13 USB connectors (2)
Rear View
1 Serial connector
2 Video connector
3 Power Supplies 1-4
4 PCI expansion slots 1-9
5 Dedicated iLO connector
6 FlexibleLOM ports 1-4
NOTE: Port configuration is dependent on the installed FlexibleLOM and may differ from what is shown in the illustration.
7 USB connectors (4)
DL580-G9-2
Internal View 1 CPU Memory Drawer
2 Memory Cartridges 1-8
3 Processors 1-4
4 FBWC capacitor slots 1-4
5 I/O Card Auxiliary Power Connectors
6 Power Supplies
7 PCI expansion slots 1-9
8 FlexibleLOM connector
9 SPI board (houses iLO chip, FBWC, microSD slot, 2x USB slots, TPM, top SAS backplane connector)
10 MicroSD Slot
Standard Features
ProcessorModel CPU frequency Cores L3 Cache Power E7-8893v3
3.2GHz
4
45MB 140W
E7-8891v3
2.8GHz 10 45MB 165W E7-8890v3 2.5GHz 18 45MB 165W E7-8880v3  2.3GHz 18
45MB 150W E7-8880Lv3  2.0GHz 18
45MB 115W E7-8870v3  2.1GHz 18
45MB 140W E7-8867v3 2.5GHz 16 45MB 165W E7-8860v3 2.2GHz 16
40MB 140W E7-4850v3 2.2GHz 14
35MB 115W E7-4830v3 2.1GHz 12 30MB 115W E7-4820v3 1.9GHz 10 25MB 115W E7-4809v3  2.0GHz 8 20MB 115W
ChipsetIntel® C602J Chipset
Intel® Xeon® E7-4800/8800v3 Processor Family
Upgradeability
Upgradeable to four (4) processors
Up to 96 DDR4 DIMM slots
Nine (9) PCIe Gen3 expansion slots
NOTE: PCIe slot availability is dependent on the number of processors installed. Please refer to the “Expansion Slots” section for more details.
Ten (10) SFF internal HDD/SSD SAS drive bays or Five (5) SFF Internal Express Bays + Five (5) SFF
Internal HDD/SSD drive bays
NOTE: Five drive bays come standard. An optional five SAS drive or five Express backplane kit with five drive bays can be ordered for ten drives.
Five NVMe SSD drive bay
Four (4) redundant hot-plug power supplies
On System Management ProcessorHPE iLO (Firmware HPE iLO4 2.0 or later), 4GB NAND
MemoryType HPE SmartMemory
DDR4 Registered (RDIMM) and Quad Rank Load Reduced (LRDIMM) DIMM Slots Available 96 Maximum 6TB (96x 64GB) NOTE: Hewlett Packard Enterprise memory from previous generation servers are not qualified or warranted with this HPE ProLiant Server. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen9.
NOTE: LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server.
Network ControllerFlexibleLOM
HPE ProLiant Gen9 servers offer a new flexible network technology – FlexibleLOMs, which offers customers a choice of 1Gb, 10Gb, or 10Gb base-T Ethernet or converged networking in their embedded
adapter:

HPE Ethernet 1Gb 4-port 331FLR FIO Adapter
HPE Ethernet 1Gb 4-port 366FLR FIO Adapter
HPE FlexFabric 10Gb 2-port 533FLR-T FIO Adapter
HPE FlexFabric 10Gb 2-port 534FLR-SFP+ FIO Adapter
HPE Ethernet 10Gb 2-port 546FLR-SFP+ FIO Adapter
HPE FlexFabric 10Gb 2-port 556FLR-SFP+FIO Adapter
HPE Flexfabric 10Gb 2-port 556FLR-T FIO Adapter
HPE Ethernet 10Gb 2-port 560FLR-SFP+ FIO Adapter
HPE Ethernet 10Gb 2-port 561FLR-T FIO Adapter
HPE Ethernet 10Gb 2-port 562FLR-SFP+FIO Adapter

NOTE: For additional details see the Networking Section of this document.
NOTE: Wake-on-LAN feature is not supported on the DL580 Gen9 with FlexibleLOMs.
Maximum Internal
Storage
CAPACITY
CONFIGURATION
Hot Plug SFF SAS 20TB
10 x 2.0TB
Hot Plug SFF SAS SSD 384TB
10 x 3.84TB Hot Plug SFF SATA SSD 384TB
10 x 3.84TB Hot Plug SFF NVMe PCIe SSD
8TB
5 x 1.6TB NOTE: Optional support for 5 NVMe SSDs or 5 SFF drives are also available.
