HP ProLiant ML350P Generation 8

Overview

The HP ProLiant ML350p Gen8 Server series is the latest generation of the best-selling ProLiant ML servers delivering best-inclass performance, availability and maximum expandability for enterprise data centers, remote branch offices and growing businesses. Incorporating key HP technologies from the HP ProActive Insight architecture, the ML350p Gen8 provides innovations in memory, server management, firmware management and server storage. It combines these innovations with the latest Intel® Xeon® processors for a system with unsurpassed flexibility and performance

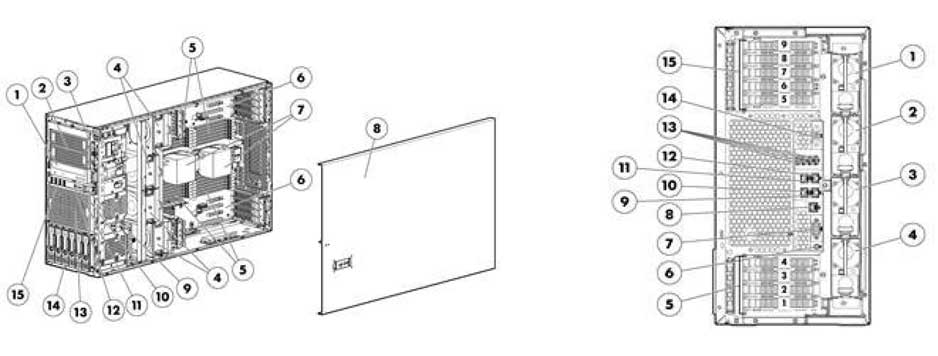

Front View: 1. Half height SATA DVD ROM or DVD RW optical drive 2. Two (2) removable media bays 3. Systems Insight Display (rack and CTO models only) 4. Four (4) system fans 5. Twenty-four (24) DIMM slots: DDR3 Load Reduced (LRDIMM), Registered (RDIMM) or Unbuffered (UDIMM) 6. Nine (9) PCIe expansion slots (8 PCIe 3.0 and 1 PCIe 2.0) 7. Two (2) processor heatsinks 8. Quick removal access panel 9. Power On / Standby button and system power LED button 10. NIC Activity LED 11. Health LED 12. UID LED button 13. Optional drive cage 14. Standard drive cage (6 LFF or 8 SFF) 15. Four (4) USB connectors Rear View: 1. Power supply 1(CTO) 2. Power supply 2(CTO) 3. Power supply 3 (Default) 4. Power supply 4 (Default) 5. Four (4) PCIe slots (for processor 1) 6. UID LED button 7. Serial connector 8. iLO connector 9. NIC connector 4 10. NIC connector 3 11. NIC connector 2 12. NIC connector 1 13. Four (4) USB connectors 14. Video connector 15. Five (5) PCIe slots (for processor 2) Standard Features Processor E5-2600 v2 series Processors Entry Processors NOTE:  All support up to 1333MHz DDR3 memory speeds. Intel® Xeon® E5-2609 v2 (2.5GHz/4-core/10MB/6.4GT-s QPI/80W) Intel® Xeon® E5-2603 v2 (1.8GHz/4-core/10MB/6.4GT-s QPI/80W) Base Processors NOTE:  All support up to1600MHz DDR3 memory speeds. Intel® Xeon® E5-2640 v2 (2.0GHz/8-core/20MB/7.2GT-s QPI/95W, DDR3-1600, HT, Turbo2-3/3/3/3/3/3/4/5) Intel® Xeon® E5-2630 v2 (2.6GHz/6-core/15MB/7.2GT-s QPI/80W, DDR3-1600, HT, Turbo2-3/3/3/3/4/5) Intel® Xeon® E5-2620 v2 (2.1GHz/6-core/15MB/7.2GT-s QPI/80W, DDR3-1600, HT, Turbo2-3/3/3/3/4/5) Intel® Xeon® E5-2630L v2 (2.4GHz/6-core/15MB/7.2GT-s QPI/60W, DDR3-1600, HT, Turbo2-2/2/2/2/3/4) Performance Processors NOTE:  All support up to 1866MHz DDR3 memory speeds. Intel® Xeon® E5-2697 v2 (2.7GHz/12-core/30MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo2-3/3/3/3/3/3/3/4/5/6/7/8) Intel® Xeon® E5-2690 v2 (3.0GHz/10-core/25MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo2-3/3/3/3/3/3/3/4/5/6) Intel® Xeon® E5-2680 v2 (2.8GHz/10-core/25MB/8.0GT-s QPI/115W, DDR3-1866, HT, Turbo2-3/3/3/3/3/4/5/6/7/8) Intel® Xeon® E5-2670 v2 (2.5GHz/10-core/25MB/8.0GT-s QPI/115W, DDR3-1866, HT, Turbo2-4/4/4/4/4/4/5/6/7/8) Intel® Xeon® E5-2667 v2 (3.3GHz/8-core/25MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo2-3/3/3/3/4/5/6/7) Intel® Xeon® E5-2650 v2 (2.6GHz/8-core/20MB/8.0GT-s QPI/95W, DDR3-1866, HT, Turbo2-4/4/4/4/5/6/7/8) Intel® Xeon® E5-2643 v2 (3.5GHz/6-core/25MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo2-1/1/1/1/2/3) Intel® Xeon® E5-2637 v2 (3.5GHz/4-core/15MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo2-1/1/2/3) E5-2600 series Processors Entry Processors NOTE: All support up to 1066MHz DDR3 memory speeds. Intel® Xeon® E5-2609 (2.4GHz/4-core/10MB/6.4GT-s QPI/80W) Intel® Xeon® E5-2603 (1.8GHz/4-core/10MB/6.4GT-s QPI/80W) Base Processors NOTE: : All support up to1333MHz DDR3 memory speeds. Intel® Xeon® E5-2640 (2.5GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2-3/3/4/4/5/5) Intel® Xeon® E5-2630 (2.3GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2-3/3/4/4/5/5) Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo23/3/4/4/5/5) Intel® Xeon® E5-2630L (2.0GHz/6-core/15MB/8.0GT-s QPI/60W, DDR3-1333, HT, Turbo23/3/4/4/5/5) Performance Processors NOTE:  All support up to 1600MHz DDR3 memory speeds. Intel® Xeon® E5-2690 (2.9GHz/8-core/20MB/8.0GT-s QPI/135W, DDR3-1600, HT, Turbo24/4/4/5/5/7/7/9) Intel® Xeon® E5-2680 (2.7GHz/8-core/20MB/8.0GT-s QPI/130W, DDR3-1600, HT, Turbo24/4/5/5/5/7/8/8) Intel® Xeon® E5-2670 (2.6GHz/8-core/20MB/8.0GT-s QPI/115W, DDR3-1600, HT, Turbo24/4/5/5/6/6/7/7) Intel® Xeon® E5-2667 (2.9GHz/6-core/15MB/8.0GT-s QPI/130W, DDR3-1600, HT, Turbo23/3/3/4/5/6) Intel® Xeon® E5-2665 (2.4GHz/8-core/20MB/8.0GT-s QPI/115W, DDR3-1600, HT, Turbo24/4/5/5/6/6/7/7) Intel® Xeon® E5-2660 (2.2GHz/8-core/20MB/8.0GT-s QPI/95W, DDR3-1600, HT, Turbo25/5/6/6/7/7/8/8) Intel® Xeon® E5-2650 (2.0GHz/8-core/20MB/8.0GT-s QPI/95W, DDR3-1600, HT, Turbo24/4/5/5/5/7/8/8) Intel® Xeon® E5-2650L (1.8GHz/8-core/20MB/8.0GT-s QPI/70W, DDR3-1600, HT, Turbo22/2/3/3/4/4/5/5) Intel® Xeon® E5-2643 (3.3GHz/4-core/10MB/8.0GT-s QPI/130W, DDR3-1600, HT, Turbo2- 1/1/2/2) Intel® Xeon® E5-2637 (3.0GHz/2-core/5MB/8.0GT-s QPI/80W, DDR3-1600, HT, Turbo2- 5/5) NOTE:  HT indicates that the processor model supports Intel® Hyper-Threading Technology. NOTE:  Turbo indicates the maximum potential frequency increment when using Intel® Turbo Boost Technology, with 8, 7, 6, 5, 4, 3, 2 or 1 core(s) active. NOTE:  DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed. NOTE: Up to 2 processors supported. Mixing different processor models is not supported. NOTE: For the Intel® C600 Chipset E5-2600 Series, the letter preceding the model number indicates the Product Line (E3, E5, E7); 2600x, 2 = number of CPUs in a Node, 6 is socket/segment designation, 00 = Processor SKU, and x = L for low power SKUs. Chipset Intel® C600 Chipset Intel® E5-2600 Processor Family Intel® E5-2600v2 Processor Family Upgradeability Upgradeable to two processors NOTE: Total 4, 8, 12 ,16, 20 or 24 cores NOTE: Processor upgrade available from Intel® Xeon® Processors E5-2600 to E5-2600 v2. NOTE: Customers who use ML350p Gen8 sandy bridge processors need to purchase Heatsink lever upgrade kit 749245-B21 when plan to upgrade to Ivy bridge processor Up to 24 DIMM slots available for higher memory capacity Up to 24 SFF Hard Drive Bays; Or 18 LFF Hard Drive Bays 8 PCIe 3.0 and 1 PCIe 2.0 I/O slots for additional communications and storage expansion Redundant Power Supply and Redundant Fans Optical Drive Bay (up to 3) On System Management Processor HP iLO (Firmware: HP iLO4) Memory Type HP SmartMemory DDR3 Load Reduced (LRDIMM), Registered (RDIMM) or Unbuffered DIMM Slots Available 24 Maximum Capacity (LRIDMM) 768GB (24 x 32GB LRDIMM @1866MHz) Maximum Capacity (RDIMM) 384GB (24x 16GB RDIMM @1866MHz) Maximum Capacity (UDIMM) 128GB (16 x 8GB UDIMM @1866MHz) NOTE: HP memory from previous generation servers are not qualified or warranted with this HP ProLiant Server. HP SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen8. NOTE: LRDIMM, RDIMM and UDIMMs are all distinct memory technologies and cannot be mixed within a server. The majority of ProLiant Gen8 servers support RDIMM, UDIMM and LRDIMM. Network Controller  HP 1Gb Ethernet 4-port 331i Adapter Maximum Internal Storage CAPACITY CONFIGURATION Hot Plug LFF SAS  72TB 18 x 4TB Hot Plug LFF SATA 72TB 18 x 4TB Hot Plug SFF SAS 28.8TB 24 x 1.2TB Hot Plug SFF SATA 24TB 24 x 1TB Hot Plug SFF SATA SSD  9.6TB 24 x 400GB Hot Plug SFF SAS SSD 19.2TB 24 x 800GB Hot Plug LFF SATA SSD 7.2TB 18 x 400GB
