HP ProLiant ML110 Generation 9 (Gen9)

Overview

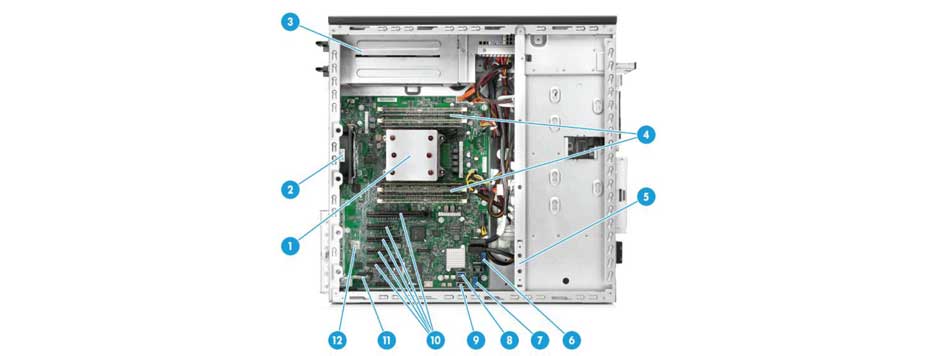

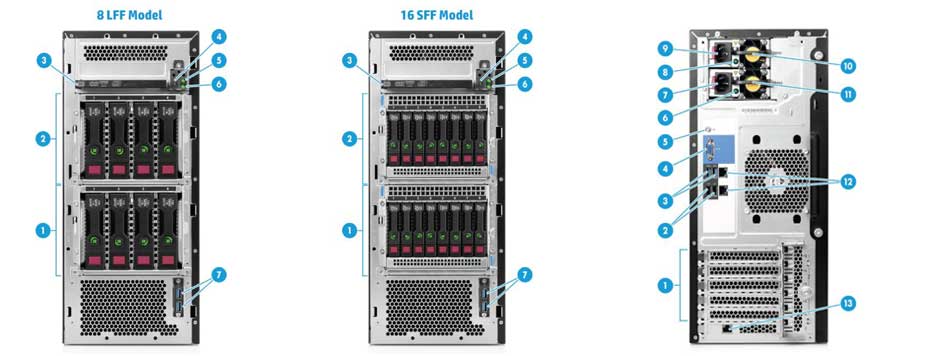

The HP ProLiant ML110 Gen9 Server is a 1P/ 4.5U affordable single-socket tower server featuring better performance, expansion, and growth than previous 1P single-socket tower models. Designed to meet small and midsized businesses’ performance compute demands the ML110 Gen9 delivers exceptional value at an affordable price Front view details for 8LFF and 16SFF 1. Drive cage 2. Drive cage 3. Optical drive (optional) 4. Power button/LED 5. Health LED 6. NIC status LED 7. USB 3.0 (2) connectors Rear View 1. PCIe3 Slots (Slots 1-5) 2. USB 2.0 (2) connectors 3. USB 3.0 (2) connectors 4. Video connector 5. UID button/LED 6. Power supply 2 LED 7. Power supply 2 power connection 8. Power supply 1 LED 9. Power supply 1 power connection 10. Power Supply 1 bay 11. Power Supply 2 bay 12. Network RJ-45 ports (2) ML Gen9 dedicated iLO port kit (optional).13 1. One (1) processor and heatsink with HP Smart Socket Guide 2. System Fan (92x32mm default), upgrade system fan(92x38mm) is required for 140W E5-1600v3 Processor and SAS SSD 3. Power Supply backplane cage 4. Eight (8) DDR4 DIMM slots 5. PCIe fan (option required to support PCIe expansion  cards) 6. Front USB 3.0 connector 7. SATA connector 1 8. Internal USB 3.0 connector 9. Internal USB 2.0 connector 10. Five (5) PCIe3 expansion slots 11. Dedicated iLO module slot (optional) 12. MicroSD slot Standard Features Processor Model CPU frequency Cores L3 Cache Power QPI DDR4 Hz E5-2660v3 2.6GHz 10 25MB 105W 9.6GT/s 2133 E5-2640v3 2.6GHz 8 20MB 90W 8.0GT/s 1866 E5-2630Lv3 1.8GHz 8 20MB 55W 8.0GT/s 1866 E5-2623v3 3.0GHz 4 10MB 105W 8.0GT/s 1866 E5-2620v3 2.4GHz 6 15MB 85W 8.0GT/s 1866 E5-2609v3 1.9GHz 6 15MB 85W 6.0GT/s 1600 E5-2603v3 1.6GHz 6 15MB 85W 6.0GT/s 1600 E5-1650v3 3.5GHz 6 15MB 140W 0.0GT/s 2133 E5-16207v3 3.5GHz 4 10MB 140W 0.0GT/s 2133 E5-1603v3 2.8GHz 4 10MB 140W 0.0GT/s 1866 NOTE: Up to 1 processor supported. Mixing different processor models is not supported. Chipset Intel® C610 Series Chipset Intel® E5-2600v3 Processor Family Intel® E5-1600v3 Processor NOTE: This is a 140W processor which need to order with the ML110 Gen9 System fan upgrade kit – 789654B21. Upgradeability Up to 16 SFF Hard Drive Bays, Or 8 LFF Hard Drive Bays Up to 8 DIMM slots Redundant Power Supply Optional optical drive (up to 1)  On System Management Processor HP iLO (Firmware HP iLO4 2.1) 2GB NAND NOTE: 1GB USB user space configurable via UEFI and accessible via iLO. Read and learn more in the iLO QuickSpecs.  Memory Type HP SmartMemory DDR4 Registered (RDIMM) or Load Reduced (LRDIMM) DIMM Slots Available 8 (8 DIMM slots per processor, 4 channels per processor, 2 DIMMs per channel) Maximum Capacity (LRDIMM) 128GB (8 x 16GB LRDIMM @2133MHz) Maximum Capacity (RDIMM) 256GB (8 x 32GB RDIMM @2133MHz) NOTE: This server does not support mixing LRDIMMs or RDIMMs. Attempting to mix any combination of these DIMMs can cause the server to halt during BIOS installation. Network Controller  Broadcom 5717C0 Dual-port 1Gb Maximum Internal Storage CAPACITY CONFIGURATION Hot Plug LFF SAS 48TB 8x6TB Hot Plug LFF SATA 48TB 8x6TB Hot Plug SFF SAS 19.2TB 16×1.2TB Hot Plug SFF SATA 16TB 16x1TB Non Hot Plug LFF SATA 24TB 8x3TB Hot Plug LFF SAS SSD 12.8TB 8×1.6TB Hot Plug LFF SATA SSD 12.8TB 8×1.6TB Hot Plug SFF SAS SSD 25.6TB 16×1.6TB Hot Plug SFF SATA SSD 25.6TB 16×1.6TB
